The MIDMARK 625 BARRIER is a medical device that is designed to provide a physical barrier between the patient and the healthcare provider during certain medical procedures. It is commonly used in settings such as dental offices, hospitals, and clinics where there is a risk of cross-contamination between patients and healthcare providers.

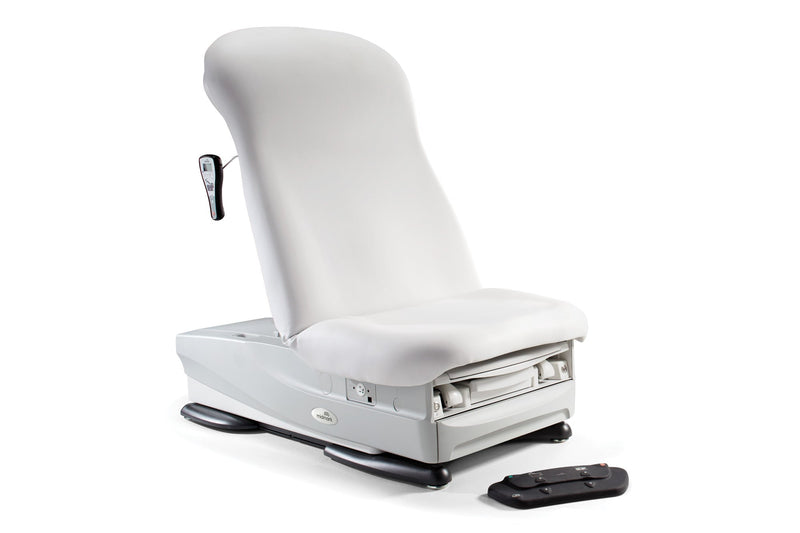

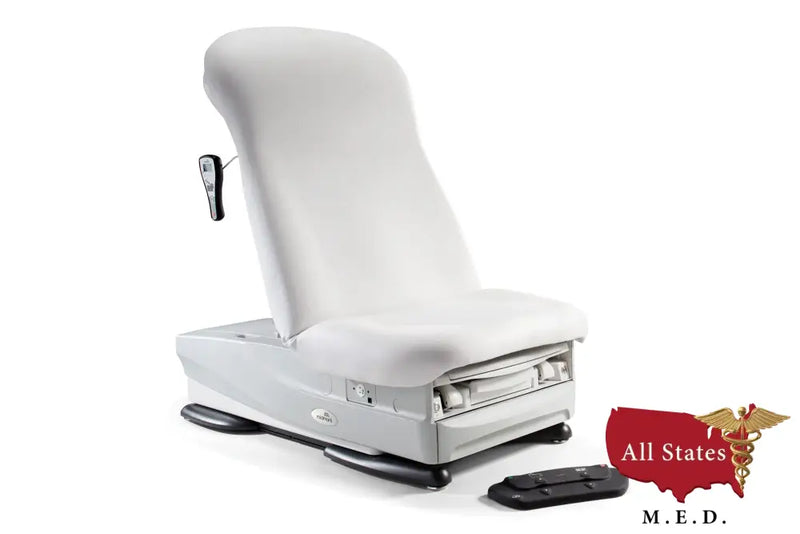

- Midmark 625 with wireless controls.
- Bariatric table
- Refurbished 6 months warranty
Specifications:
PATIENT WEIGHT CAPACITY
650 lb (295 kg)
HEIGHT
Uncompressed: 15.5" Low/37" High (39 cm/94 cm)
Compressed: 14.6" Low (36 cm)
PREMIUM UPHOLSTERY DIMENSIONS (top)
28" W x 60" L (71 cm x 52 cm)
LENGTH WITH FOOTREST EXTENDED
76" (193 cm)
PELVIC TILT
5 1/5°
HEATED DRAWER
24.6 W
HEATED DRAWER TEMPERATURE
92°F to 112°F at 115 VAC input voltage, 70°F ambient
PAPER ROLL HOLDER
Holds 24" x 3.56" dia. paper roll (61 cm x 9 cm)
ELECTRICAL RECEPTACLE
Electrical Draw: 4 A

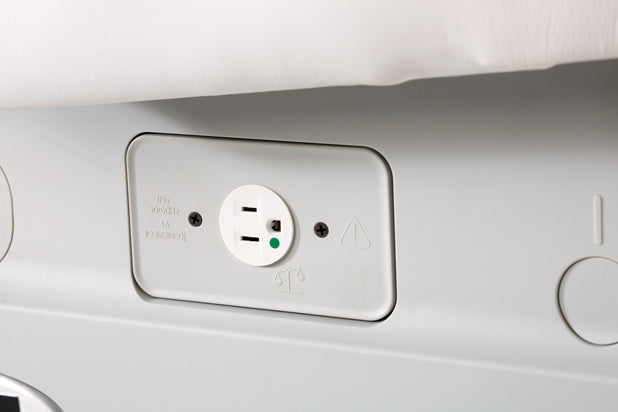

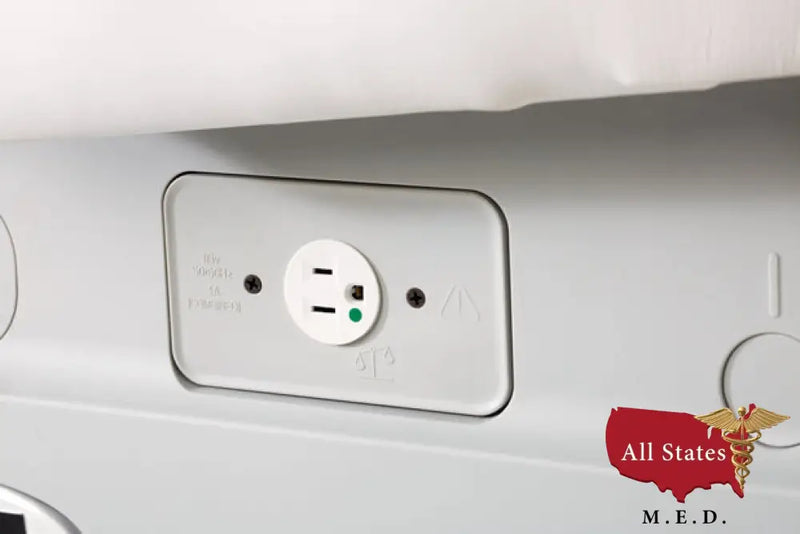

Hospital-grade, electrical receptacles on left and right sides
TABLE WEIGHT
435 lb (197 kg)
SHIPPING WEIGHT
485 lb (220 kg)
ELECTRICAL RATINGS
115 VAC, 50/60 Hz, 12 A
OPTIONS
Heated Upholstery Temperatures: Low 95°F/High 102°F
Wide Premium Top: 32" W x 60" L (97 cm x 152 cm)
REFURBISHED 6 Month Warranty
Model
|
625 -004 |
Serial Number |
All |
Patient Weight (maximum):
|
650 lbs (295 kg)
|
Intended Weight:
|
Between 30 and 650 pounds (13.6/295kg)
|
Shipping Options and Weights: |
Table with Upholstery
|
475 lbs (216 kg )
|
Table with Packaging and Skid, no Upholstery |
502 lbs (228 kg) |
Upholstery with Packaging, shipped separately
|
45 lbs (20 kg) |
Power Cord Length:
|
8 ft. (244 cm)
|
Electrical Requirements:
|
Refer to: Model Identification / Compliance Chart
|
Foot / Hand Control Voltage:
|
14 VAC, SELV (Safety Extra Low Voltage)
|
Simplex Receptacles (maximum load):
|
115 VAC, 5A, 50/60 Hz
|
Fuses: |
IEC inlet fuses (2) |
6.3A, 250V, Type-T, 5 x 20 mm |
F1 and F2, on the main PC board |
10A, 250V, Type-T, 5 x 20 mm |
F3, on the main PC board |
160mA, 250V, Type-T, 5 x 20 mm |
F4, on the main PC board |
6.3A, 250V, Type-T, 5 x 20 mm |
Models with drawer heaters - Distribution board fuses (2) |
800mA, 250V, Type-T, 5 x 20mm |
Duty Cycles:
|
Motor Run Time: |
Intermittent Operation , 30 seconds ON / 5 minutes OFF |
Receptacles and Drawer Heater: |
Continuous Operation |
Classifications:
|
Class 1, Type B Applied Part
|
Protection against ingress of fluids:
|
IPXO
Foot Control only: IPX1
|
