Description:

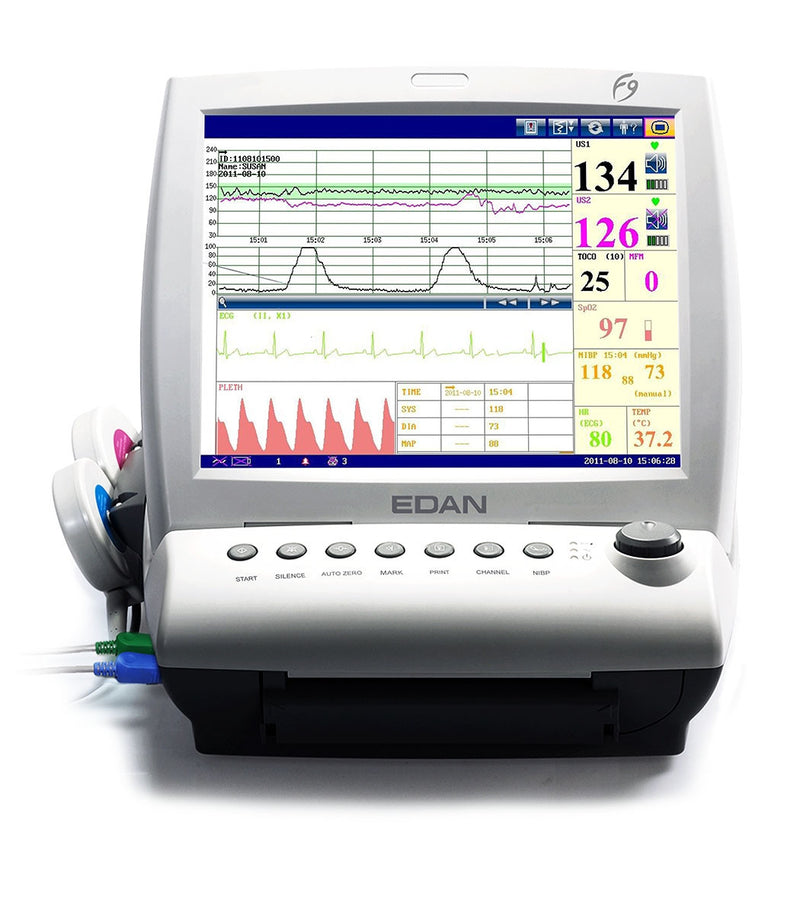

The Edan F9 Express Fetal/Maternal Monitor provides solutions for all areas of fetal monitoring, ranging from antepartum, intrapartum, and postpartum clinical applications. F9 is high-end fetal & maternal monitor, it offers the most advanced integrated monitoring for the delivery room in big hospital, private obstetrician's office. The F9 is designed for moving situations, covers the entire continuum of antepartum, intrapartum and postpartum applications.
With integrated monitoring of twins' FHR, uterine activity, fetal movement, intrauterine pressure, and direct ECG as well as maternal NIBP, SpO2, ECG, and TEMP, the F9 series offers the most cost effective and flexible solution for all your fetal monitoring needs, without compromising quality, precision, performance, or ergonomics.
Includes:
- Main Unit with 12.1 Color TFT LCD Display
- 2 FHR Probes (#12.01.109301-01).
- TOCO Probe (#12.01.31527-01).
- 3 lead ECG Cable (#01.57.471007).
- Adult Disposable Adhesive Electrodes [(Snap Connector) (#11.57.040159)].
- 3 m NIBP Tubing (#01.59.036104).
- Reusable Adult Cuff [(25 - 35 cm)(#11.57.40029)].
- Temperature Skin Probe (#01.15.040187).
- Event Marker (#02.01.210095).
- Patient Belt (#01.57.02264).
- Ultrasound Gel [(CE Mark, 250 g) (#11.57.78008-11)].
- Edan SH1 Reusable SpO2 Sensor (#12.01.109069).
- 1 Packet Recording Paper (#F6/F9-P).
- Ethernet Cable (#11.13.20096).
- Insight Connection Cable (#01.13.107659-11).
- Insight Software (CD) and Manual.
- User manual
Features:
- Sensitive waterproof FHR transducer.
- Flat surface design and waterproof TOCO transducer.
- Fetal and maternal parameters both available.
- Monitoring waveform storage and playback.
- Three monitoring interfaces.
- Built-in long life thermal printer.
- Compatible with 150/152 mm universal recording paper.
- Compatible with American/International standard recording.
- Signals Overlap Verification to separate twins FHR.
- Built-in rechargeable battery.
- Continuous post-delivery monitoring with maternal parameters: NIBP, SpO2, HR, ECG, TEMP.
- Optional telemetry transducer system.
- 24 hours waveforms playback.
- Optional built-in wireless module.
- Software for data transmission to PC.
- 1, 2, 3 cm/minute real-time printing speeds.
- Quick printing for stored waveform.
- Lithium battery for 4 hours continuous working.
- Probe rack and wall mounting rack
- Handle for easy carry.
Specifications:
-
Basic Parameters: FHR, TOCO, Event Mark, AFM.
-
Internal Parameters: IUP, DECG (optional).
-
Maternal Parameters: MECG, NIBP, MSpO2.
-
Display: 12.1" (30.7 cm) color TFT-LCD screen (touchscreen optional).
-
Display Resolution: 800 x 600.
-
Dimensions: 13.6" x 13" x 5" (347 mm x 330 mm x 126 mm).
-
Weight: 13.2 lb (6 kg).
-
Battery: 14.8 V rechargeable Lithium-Ion battery.
-
Battery Continuous Working Time: 4 hours.
-
Ultrasound:
-
Technique: Ultrasound Pulse Doppler with correlation.
-
Pulse Repetition Rate: 2 KHz.
-
Ultrasound Frequency: 1.0 MHz + 10%.
-
FHR Range: 50 bpm - 240 bpm.
-
Resolution: 1 bpm.
-
Accuracy: ±2 bpm.
-
DECG:
-
Technique: Peak - Peak detection technique.
-
FHR Range: 30 bpm - 240 bpm (American Standard), 50 bpm - 210 bpm (International Standard).
-
Resolution: 1 bpm.
-
Accuracy: ±1 bpm.
-
Input Impedance: > 10 M (Differential).
-
Input Impedance: > 20 M (Common Mode).
-
TOCO:
-
TOCO Range: 0 - 100 Relative (%).
-
Resolution: 1%.
-
Zero Mode: Auto/Manual.
-
Non-Linear Error: ±1 mmHg.
-
IUP:
-
Pressure Range: 0 - 100 mmHg.
-
Resolution: 1%.
-
Zero Mode: Auto/Manual.
-
Non-Linear Error: ±mmHg.
-
Auto Fetal Movement (AFM):
-
Technique: Pulsed Doppler Ultrasound.
-
Range: 0 - 100 (%).
-
Resolution: 1%.
-
Marking: Manual fetal movement mark.
-
SpO2:
-
Measuring Range: 0 - 100 Relative (%).
-
Resolution: 1%.
-
Measuring Accuracy: ±2 bpm.
-
NIBP:
-
Systolic Pressure: 50 mmHg - 240 mmHg.
-
Mean Pressure: 25 mmHg - 200 mmHg.
-
Diastolic Pressure: 15 mmHg - 180 mmHg.
-
Resolution: 1 mmHg.
-
Temperature:
-
Measuring Range: 82.4°F - 111.2°F (28°C - 44°C).
-
Accuracy: ±0.2°C.
