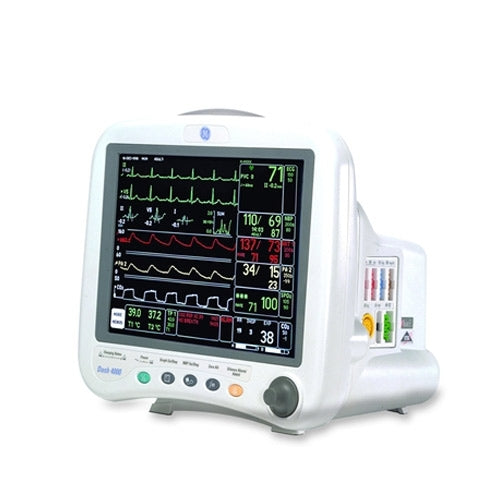

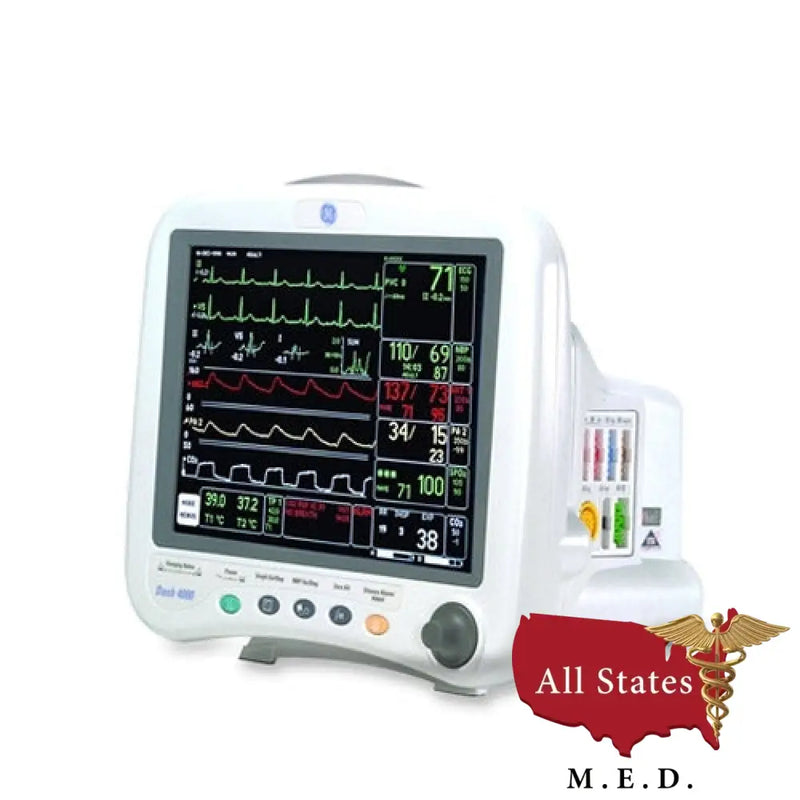

GE Dash 4000 Patient Monitor

Refurbished

The GE Dash 4000 Patient Monitor includes an adult SpO₂ finger sensor, standard adult reusable NIBP cuff and hose, ECG cable, and new battery.

Warranty: 90 Days - Parts and Labor.

The Dash 4000 is designed to monitor a fixed set of parameters including ECG, noninvasive blood pressure, impedance respiration, SpO₂, and temperature. An optional CO₂ parameter is available. It is excellent for transport, special procedure rooms, and physician offices. The Dash 4000 features a larger display screen than the previous model 3000.

GE Dash 4000 Patient Monitor Features

• ECG.
• Nellcor technology.
• Non-Invasive Blood Pressure (NIBP).
• SpO₂.
• Temperature.
• Lightweight and rugged for portability.
• Wireless and wired networking options.
• Up to seven waveforms and four invasive pressures.
• High resolution CRG trends for NICU monitoring.
• OPTION OTHER ACCESSORIALS CO2 Are available (Not Included)

GE Dash 4000 Patient Monitor Specifications

• Dimensions: 27.4 cm (H) x 24.3 cm (D) x 29.3 cm (W).
• Weight: 12.56 lb (5.7 kg).
• Display:
  • Size: 10.4", 26 cm (diagonal).
  • Type: Active-matrix color TFT.
  • Resolution: 640 x 480 pixels.
  • Number of Traces: 6 maximum.
• Alarms:
  • Priority: 4 levels - Crisis, Warning, Advisory, and Message.
  • Notification: Audible and visual.
• Temperature Range: 32 to 113 °F (0 to 45 °C).
